ZEISS INTRABEAM 600
Model:-INTRABEAM 600
Manufacturer:-ZEISS
Origin:-Germany

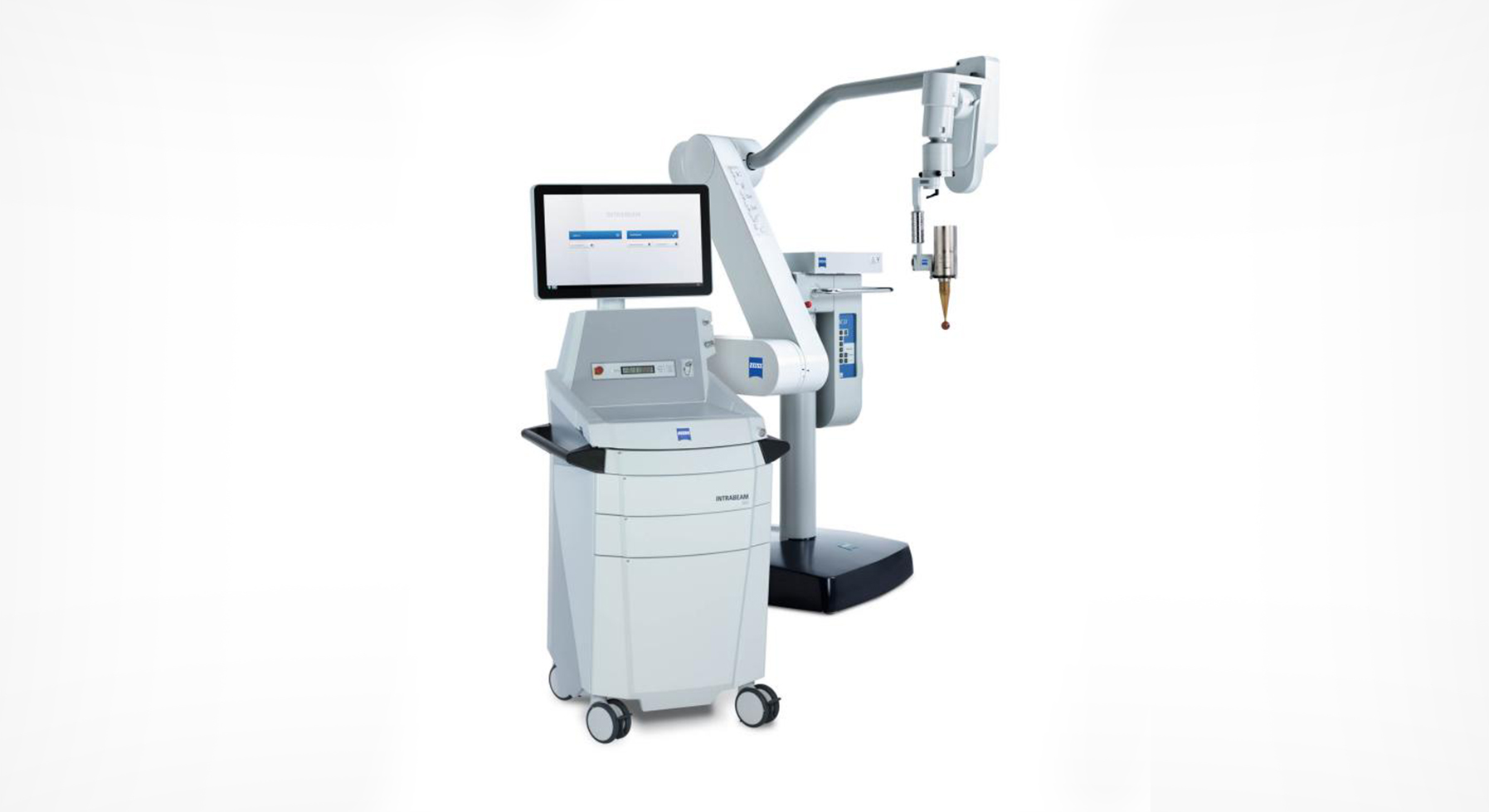

ZEISS INTRABEAM 600
Targeted Radiation Therapy at the Point of Care
The ZEISS INTRABEAM 600 is an advanced intraoperative radiotherapy (IORT) system designed to deliver precise, localized radiation directly to the tumor site during surgery. By treating the affected area immediately after tumor removal, it minimizes radiation exposure to surrounding healthy tissues and significantly improves treatment efficiency.
Key Benefits
- Single-dose radiation during surgery
- Highly targeted therapy with minimal exposure to healthy tissue
- Reduced overall treatment time
- Enhanced patient comfort and convenience
- Lower risk of radiation-related side effects
Clinical Applications
- Breast cancer (breast-conserving surgery)
- Brain tumors
- Spinal and vertebral metastases
- Gastrointestinal tumors
Core Features
- Precision X-ray Source
Delivers controlled, low-energy radiation directly to the treatment area - Localized Dose Delivery
Focuses radiation on the tumor bed while protecting surrounding tissues - Versatile Applicator System
Supports spherical and needle applicators for different treatment needs - Intraoperative Use
Enables radiation therapy to be completed during surgery
Technical Specifications
- X-ray Tube Voltage: 40–50 kV
- Tube Current: 5–40 μA
- Power Supply: 110–240 V, 50–60 Hz
- Power Consumption: Approx. 300 VA
- System Weight: Approx. 155 kg
System Components
- Mobile workstation
- Control console
- Floor stand
- Applicators (spherical and needle types)
Why Choose ZEISS INTRABEAM 600?
The system offers a highly efficient, patient-friendly solution by combining surgery and radiation therapy into a single procedure. This not only saves time but also enhances treatment precision and clinical outcomes.
